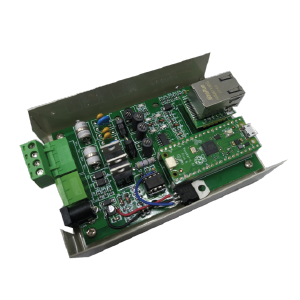

EL76 EL76 is ELID Communicator.... Reading Range: 1-5cm Point 2 point 3 Point 4 Point 5 Documents .......

EL70L EL70L was designed to offers 1 port conversion from TCP/IP to multi-drop or TCP/IP to RS-485 EL70L only work as communicator without license dongle. If license dongle is require, you have to use EL70P: A USB license dongle that looks like a USB thumb drive EL70P dongle EL70F: A LAN based license unit accessible through [...]

EL70S EL70S was designed to offers 1 port conversion from USB to RS-485 All the function of EL70S is the same as EL70W except EL70S does not have build-in license. It only work as communicator without license. If license is require, you have to use EL70P and plug directly to the PC. EL70S Wiring Diagram To find out how to [...]

EL70Q EL70Q was designed to offers 1 port conversion from USB to multi-drop USB to RS-485. All the function of EL70Q is the same as EL70Y except EL70Q does not have license dongle slot. It only work as communicator without license dongle. If license dongle is require, you have to use EL70P and plug directly [...]

EL70F EL70F is a LAN license dongle, and is designed for virtual servers, which have no access to USB ports. If user requires EL70F LAN based license dongle, it has to be specifically requested and there is additional charge. EL70F Documentation EL70F Wiring Diagram - EL70F Wiring Diagram.pdf EL70F User Guide - EA792T-EL70F User Guide v2.pdf Instruction on IP configuration Instruction on [...]

EL70P EL70P is a USB license dongle, the size of a normal thumb drive. It can be plugged into any USB port for the PC to authenticate the ELID software your are running. EL70P Configuration USB driver for EL70P before connecting to PC Download driver for WINDOWS here - EL70P WIN Driver or EL70P WIN Driver [...]

EL70R EL70R is a low-cost USB-to-RS485 converter, with built-in surge suppressor. EL70R is typically deployed for systems where there are 4-doors or less. Beyond 4 doors, you need to select EL70W because licensed software is required. EL70R is also deployed in multi-bus systems, as shown above where bus #1 uses EL70W (to provide [...]

EL70W EL70W USB license Key with RS485 port If you have an installation that uses IP controllers and you only need a license key to run Elid software, then EL70W is the right product for you. Unlike normal Sofkey2 which requires a communicator such as EL70Y to work, EL70W plugs directly into USB. In addition, EL70W also provides [...]

EL70Y EL70YA USB Communicator EL70YA is replaced version of EL70Y. EL70YA use different MCU compared to EL70Y. All the function of EL70YA is the same as EL70Y except EL70YA cannot read old license dongle(one with DIP switch at the back). Urgent Notice - version 101 Failure symptom - EL70YA USB auto reset when there is [...]
